SN74AUP1G58DBVR

IC CONFIG MULT-FUNC GATE SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74AUP1G58DBVR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74AUP1G58DBVR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
H58R	SN74AUP1G58DBVR		SOT-23-6	6	npn RF 8GHz
H58_	SN74AUP1G58DBVR		SOT-23-6	6	pnp 500mA driver

Output Type	Single-Ended
Operating Temperature	-40°C ~ 85°C
Current - Output High, Low	4mA, 4mA
Number of Circuits	1
RoHS	RoHS
Logic Type	Configurable Multiple Function
Voltage - Supply	0.8V ~ 3.6V

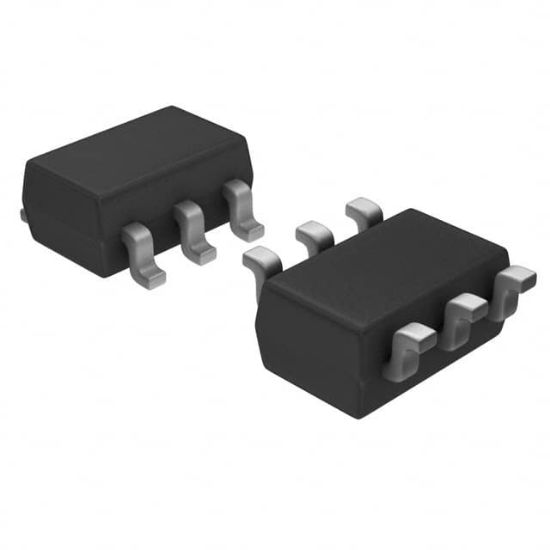

Supplier Device Package	SOT-23-6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Number of Inputs	3
Schmitt Trigger Input	No
Mounting Type	Surface Mount

Service Assurance

The transaction is just the beginning, ONEPCBA provides a closed-loop service that guarantees quality from pre-sales to after-sales. As a value-added service provider, we provide quality assurance, including a longer after-sales guarantee time than the original factory.

We have established a clean, constant temperature warehouse, and constantly monitor the temperature and humidity of the warehouse. For electrostatic sensitive devices (MOS, transistors, CMOS devices, etc.), use electrostatic shielding measures; for magnetic field sensitive devices, also use corresponding magnetic field isolation measures.

In addition to ensuring the quality of components from the source, we have also established a strict QC warehousing process. We have established a database of components, including labels, chip appearances, chip silkscreens, and markings of wafers inside some chips. Compare the differences from various dimensions, and strictly confirm with the original factory. At the same time, we will also conduct other test requirements put forward by customers such as solderability, X-ray perspective inspection, ultrasonic scanning, slicing, uncapping, ambient temperature test, etc.

We establish a continuous cooperative relationship with original manufacturers, agents, and authorized catalogs to control the quality of materials from the source. Therefore, the components we sell are all traceable. Whether it is a process change or a version upgrade, we can be notified at the first time and inform customers of possible changes in advance to deal with various possible problems.
