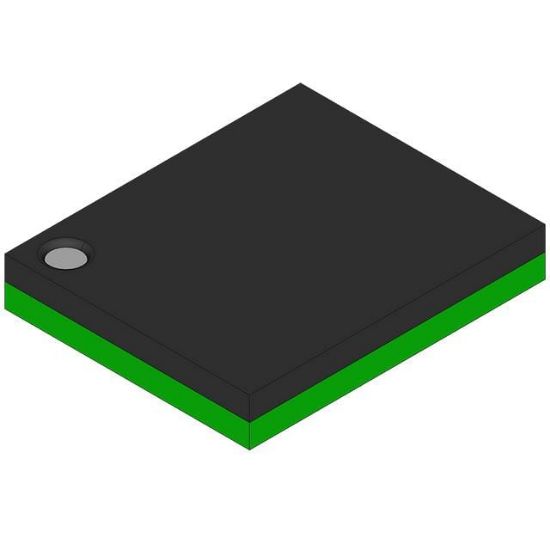

SN74AVCA406LGXYR

IC TRNSLTR BIDIRECTIONAL 20BGA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74AVCA406LGXYR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74AVCA406LGXYR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
WV406	SN74AVCA406LGXYR		S-PBGA-N20	20	MMC, SD Card, and Memory Stick Voltage-Translation Transceiver

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.2 V ~ 3.6 V
Data Rate	-
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	4
Package	Tape & Reel (TR),Bulk
Channel Type	Bidirectional
Voltage - VCCB	1.2 V ~ 3.6 V
Mounting Type	Surface Mount
Supplier Device Package	20-BGA MICROSTAR JUNIOR (2.5x3)
Translator Type	Voltage Level
Features	SIM Card Interface
RoHS	RoHS
Output Type	Tri-State, Non-Inverted
