SN74CB3T16211GQLR

IC BUS SWITCH 12 X 1:1 56BGA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74CB3T16211GQLR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74CB3T16211GQLR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
KR211	SN74CB3T16211GQLR		R-PBGA-N56	56	24-Bit FET 2.5-V/3.3-V Low-Voltage Bus Switch with 5-V Tolerant Level Shifter

Circuit	12 x 1:1
Independent Circuits	2
Type	Bus Switch

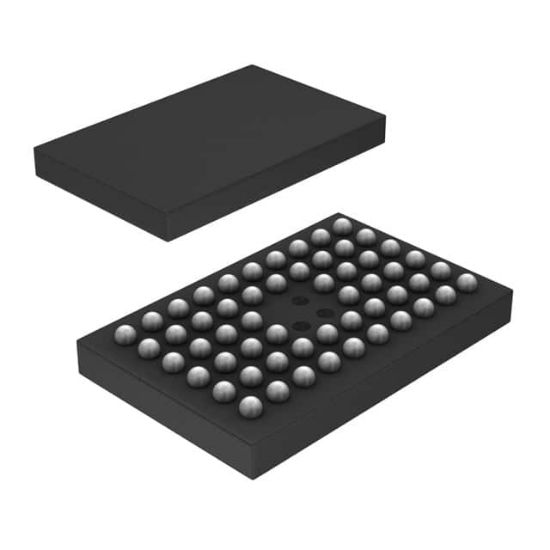

Supplier Device Package	56-BGA Microstar Junior (7x4.5)
RoHS	RoHS
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2.3V ~ 3.6V
Current - Output High, Low	-
Voltage Supply Source	Single Supply
Package	Tape & Reel (TR)
Mounting Type	Surface Mount
