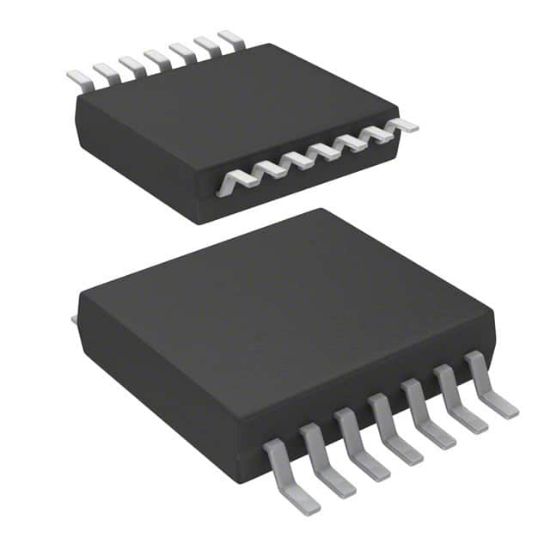

SN74LV05ADGVR

IC INVERTER OD 6CH 6-INP 14TVSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LV05ADGVR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LV05ADGVR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LV05A	SN74LV05ADGVR		TVSOP-14	14	Hex Inverters With Open-Drain Outputs

Voltage - Supply	2V ~ 5.5V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	7.5ns @ 5V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-TVSOP
Logic Level - High	1.5V
Number of Circuits	6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	20 μA
Logic Level - Low	0.5V
Number of Inputs	6
Operating Temperature	-40°C ~ 85°C
Features	Open Drain
RoHS	RoHS
Current - Output High, Low	-, 12mA
