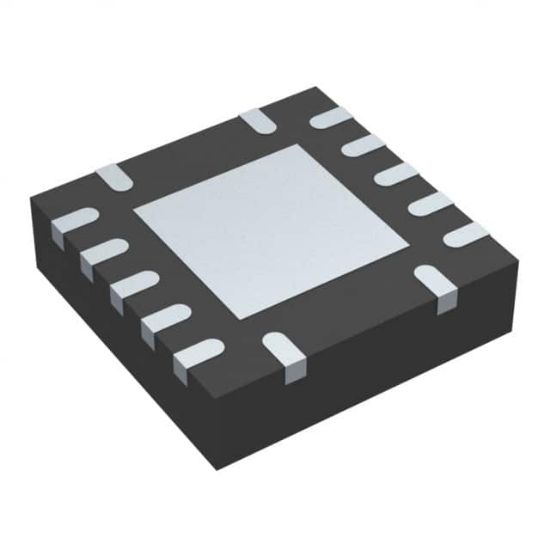

SN74LV4066ARGYR

IC SWITCH QUAD 1X1 14QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LV4066ARGYR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LV4066ARGYR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LW066A	SN74LV4066ARGYR		S-PVQFN-N14	14	Quadruple Bilateral Analog Switch

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	0.5pF, 5.5pF
On-State Resistance (Max)	75Ohm
Mounting Type	Surface Mount
Supplier Device Package	14-VQFN (3.5x3.5)
Switch Circuit	SPST - NO
Voltage - Supply, Dual (V±)	-
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Charge Injection	-
Switch Time (Ton, Toff) (Max)	12ns, 12ns
Voltage - Supply, Single (V+)	2V ~ 5.5V
Crosstalk	-45dB @ 1MHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	2Ohm
-3db Bandwidth	50MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	100nA
