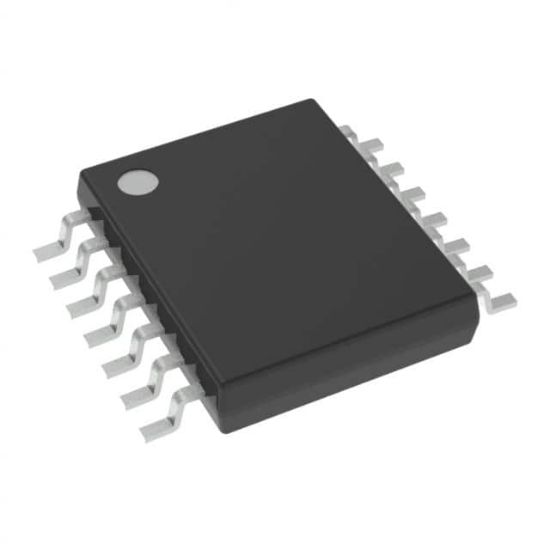

SN74LVC02AQPWRG4Q1

IC GATE NOR 4CH 2-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC02AQPWRG4Q1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC02AQPWRG4Q1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LC02AQ	SN74LVC02AQPWRG4Q1	TI	14	0	Automotive Catalog Quadruple 2-Input Positive-NOR Gate

Voltage - Supply	2V ~ 3.6V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	5.5ns @ 3.3V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Logic Level - High	2V
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.8V
Number of Inputs	2
Operating Temperature	-40°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
