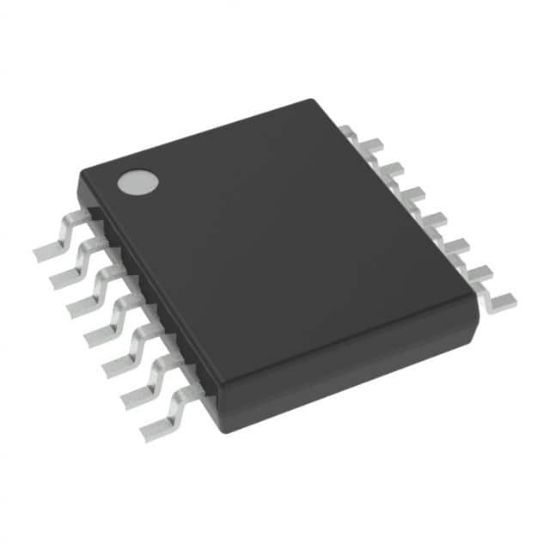

SN74LVC14AQPWREP

IC INVERTER 6CH 6-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC14AQPWREP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC14AQPWREP Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LVC14AE	SN74LVC14AQPWREP		TSSOP-14	14	Enhanced Product Hex Schmitt-Trigger Inverter

Voltage - Supply	2V ~ 3.6V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	6.4ns @ 3.3V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Logic Level - High	2V
Number of Circuits	6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.4V ~ 0.8V
Number of Inputs	6
Operating Temperature	-40°C ~ 125°C
Features	Schmitt Trigger
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
