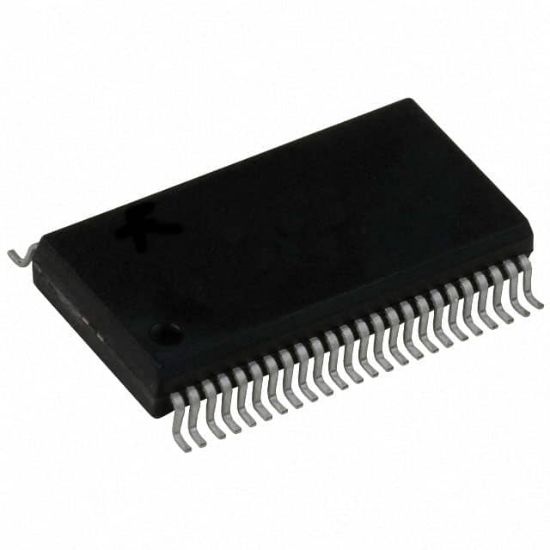

SN74LVC16245ADL

IC TXRX NON-INVERT 3.6V 48SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC16245ADL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC16245ADL Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LVC16245A	SN74LVC16245ADL		SSOP-48	0	16-Bit Bus Transceiver With 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 125°C (TA)
Current - Output High, Low	24mA, 24mA
RoHS	RoHS
Logic Type	Transceiver, Non-Inverting
Voltage - Supply	1.65V ~ 3.6V
Number of Elements	2
Supplier Device Package	48-SSOP
Package	Tube
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
