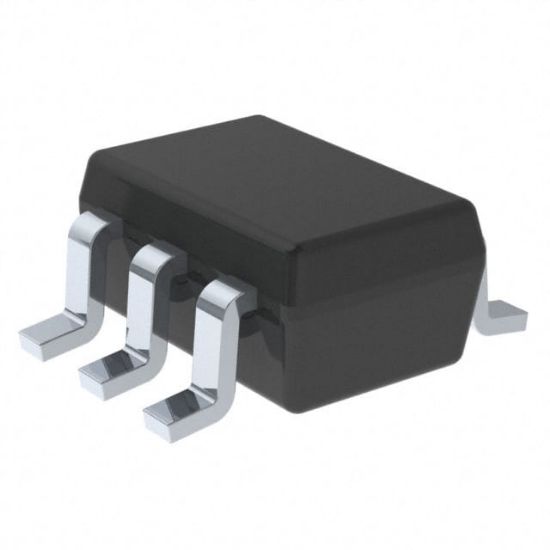

SN74LVC1G11DCKR

IC GATE AND 1CH 3-INP SC70-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC1G11DCKR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC1G11DCKR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
C3R	SN74LVC1G11DCKR	TEXAS	SOT-363/SC70-6/SC-88	0	集成电路ICIntegrated Circuit（IC）逻辑电路Logic circuit 逻辑门Gate

Voltage - Supply	1.65V ~ 5.5V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	3.5ns @ 5V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	SC-70-6
Logic Level - High	1.7V ~ 2V
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.7V ~ 0.8V
Number of Inputs	3
Operating Temperature	-40°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	32mA, 32mA
