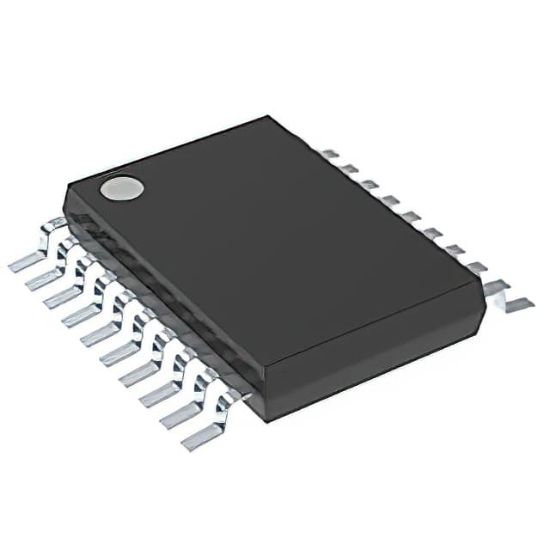

SN74LVC245APWE4

IC TXRX NON-INVERT 3.6V 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SN74LVC245APWE4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC245APWE4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LC245A	SN74LVC245APWE4	TI	20	0	Octal Bus Transceiver With 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 125°C (TA)
Current - Output High, Low	24mA, 24mA
RoHS	RoHS
Logic Type	Transceiver, Non-Inverting
Voltage - Supply	1.65V ~ 3.6V
Number of Elements	1
Supplier Device Package	20-TSSOP
Package	Bulk,Tube
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
