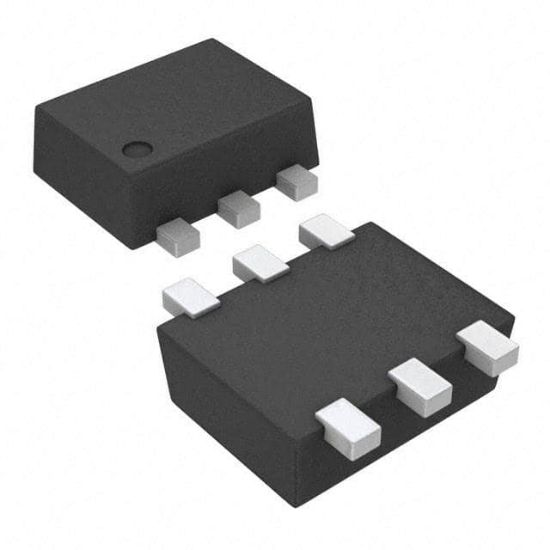

SN74LVC2G04DRLR

IC INVERTER 2CH 2-INP 6SOT

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC2G04DRLR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC2G04DRLR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CCR	SN74LVC2G04DRLR		SOT-563	6	Dual Inverter
CC7 CCR	SN74LVC2G04DRLR	TI	6	0	Dual Inverter

Voltage - Supply	1.65V ~ 5.5V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	3.2ns @ 5V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	SOT-5X3
Logic Level - High	1.7V ~ 2V
Number of Circuits	2
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	10 μA
Logic Level - Low	0.7V ~ 0.8V
Number of Inputs	2
Operating Temperature	-40°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	32mA, 32mA
