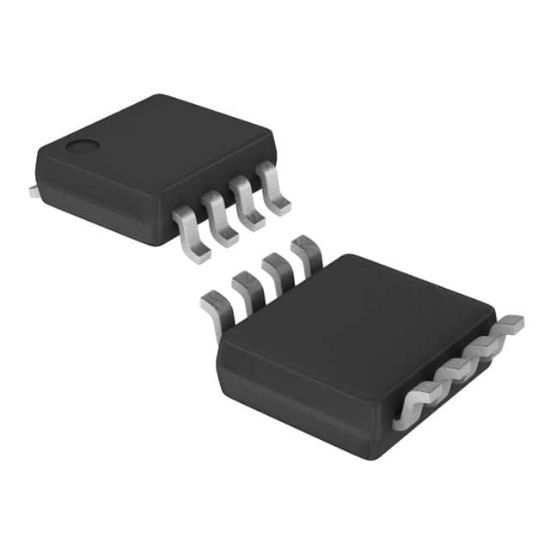

SN74LVC2G53DCUR

IC SWITCH SPDT US8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC2G53DCUR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC2G53DCUR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
C53R	SN74LVC2G53DCUR		VSSOP-8	8	Single Pole, Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer
C53_	SN74LVC2G53DCUR		VSSOP-8	8	Single Pole, Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	10pF
On-State Resistance (Max)	13Ohm
Mounting Type	Surface Mount
Supplier Device Package	8-VSSOP
Switch Circuit	SPDT
Voltage - Supply, Dual (V±)	-
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Charge Injection	-
Switch Time (Ton, Toff) (Max)	4.5ns, 8ns
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Crosstalk	-58dB @ 1MHz
Multiplexer/Demultiplexer Circuit	2:1
Channel-to-Channel Matching (ΔRon)	2Ohm (Max)
-3db Bandwidth	300MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	100nA
