SN74LVC8T245DBQR

IC TRANSLATION TXRX 5.5V 24SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC8T245DBQR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC8T245DBQR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo

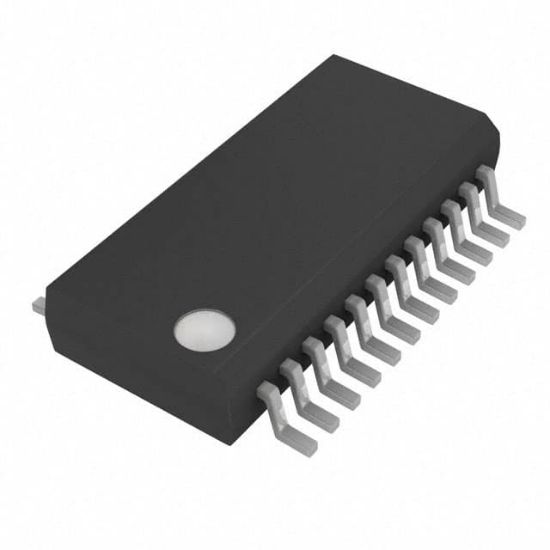

LVC8T245	SN74LVC8T245DBQR		QSOP-24	24	8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and Three-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	32mA, 32mA
RoHS	RoHS
Logic Type	Translation Transceiver
Voltage - Supply	1.65V ~ 5.5V
Number of Elements	2
Supplier Device Package	24-SSOP
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
