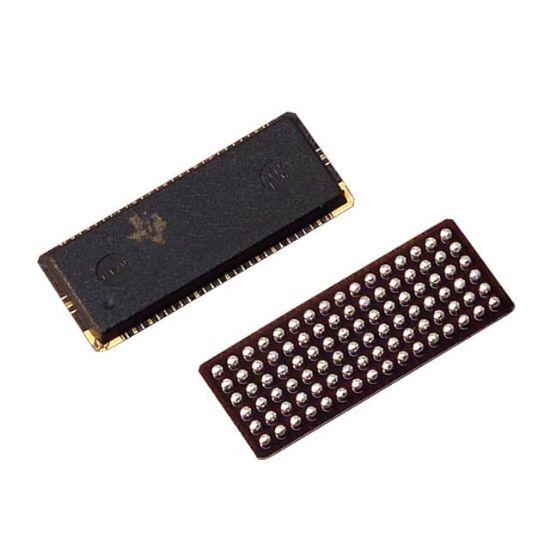

SN74LVCZ32244AZKER

IC BUF NON-INVERT 3.6V 96PBGA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVCZ32244AZKER

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVCZ32244AZKER Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ZC244A	SN74LVCZ32244AZKER		LFBGA-96	96	32-Bit Buffer/Driver with 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	24mA, 24mA
RoHS	RoHS
Logic Type	Buffer, Non-Inverting
Voltage - Supply	2.7V ~ 3.6V
Number of Elements	8
Supplier Device Package	96-PBGA MICROSTAR (13.6x5.6)
Package	Tape & Reel (TR),Bulk
Input Type	-
Number of Bits per Element	4
Mounting Type	Surface Mount
