SN74LVTH540DWR

IC BUFFER INVERT 3.6V 20SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVTH540DWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVTH540DWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LVTH540	SN74LVTH540DWR	TI	20	0	3.3V ABT Octal Buffers/Drivers With 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	32mA, 64mA
RoHS	RoHS
Logic Type	Buffer, Inverting
Voltage - Supply	2.7V ~ 3.6V
Number of Elements	1

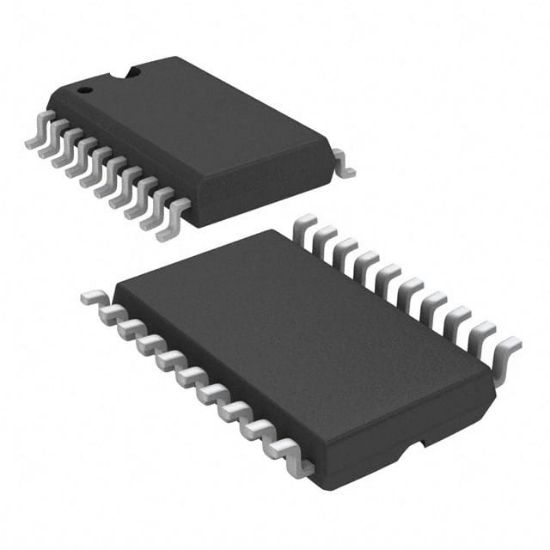

Supplier Device Package	20-SOIC
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
