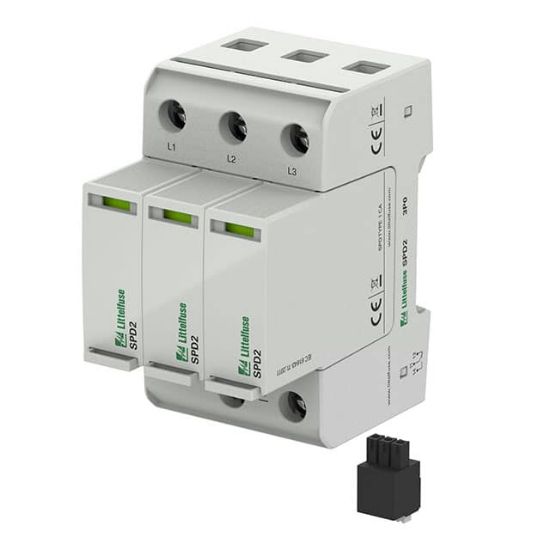

SPD2-480-3P0-R

SPD MOD 3P+0 480VAC TYPE 1+2

1 review(s) | Add your review

Availability: In stock

Manufacturer: Littelfuse Inc.

SKU: SPD2-480-3P0-R

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SPD2-480-3P0-R Description

Littelfuse Pluggable Surge Protective Devices

Littelfuse Pluggable Surge Protective Devices (SPDs) provide equipment protection and overvoltage limiting from transient overvoltage events lasting for microseconds. These SPDs offer single-pole and multi-pole pluggable modules with Class 2 / Type2 / Type 1 CA protection ratings. Littelfuse Pluggable SPDs also offer additional protection features such as thermal protection and IP20 rating protection. These additional protection features eliminate catastrophic failure and provide?a finger-safe design that increases worker protection. With an interlocking tab mechanism, compact footprint, and visual life indicator, these pluggable SPDs provide design flexibility with vibration tolerance. These pluggable SPDs are capable of clamping and can withstand high-energy transients. This ensures low-residual voltage during high-energy surge events and higher nominal discharge current to prevent disruption, downtime, and degradation of equipment. The pluggable SPDs can be readily used in voltage sub-distribution board applications in the 60V to 1500V voltage range.

Operating Temperature	-40°C ~ 80°C
Voltage - Protection Level (VP) (2416)	2.3 kV
Mounting Type	DIN Rail
Voltage - Protection Rating (VPR)	1.5 kV
Current - Short Circuit Rating (SCRR)	200 kA
Voltage - Continuous Operating (Max) (MCOV)	480VAC
Package	Bulk
Approval Agency	CE, cURus, UL, VDE
Form	Base + Module
Type	Type 1, Type 2
Number of Poles	3
Current - Discharge (Max) (8/20μS)	50 kA
Features	Remote Signaling Contacts, Thermally Protected
Current - Discharge (Nom) (8/20μS)	20 kA
RoHS	RoHS
