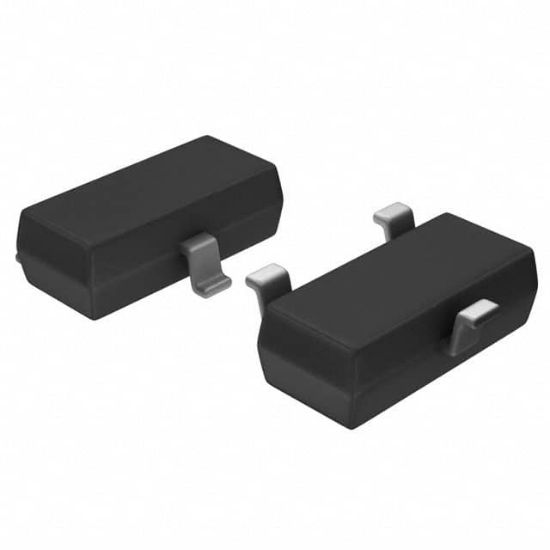

SS360ST

MAGNETIC SWITCH LATCH SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Honeywell Sensing and Productivity Solutions

SKU: SS360ST

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SS360ST Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
360ST	SS360ST		SOT-23	0	Latching Magnetic Sensor IC

Voltage - Supply	3V ~ 24V
Current - Supply (Max)	6mA
Current - Output (Max)	20mA
Mounting Type	Surface Mount
Technology	Hall Effect
Function	Latch
Sensing Range	5.5mT Trip, -5.5mT Release
Operating Temperature	-40°C ~ 150°C (TA)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Polarization	South Pole
Test Condition	-40°C ~ 150°C
Supplier Device Package	SOT-23-3
Features	-
RoHS	RoHS
Output Type	Open Collector
