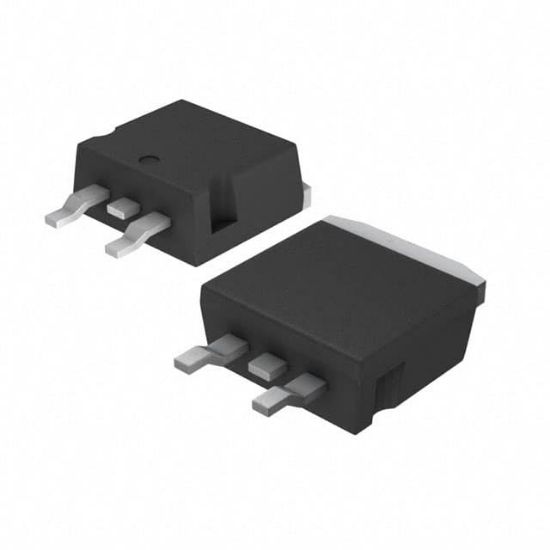

STB40NF20

MOSFET N-CH 200V 40A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STB40NF20

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STB40NF20 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
40NF20	STB40NF20		D2PAK	3	N-channel 200V - 0.038 -40A Low gate charge STripFET Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Rds On (Max) @ Id, Vgs	45mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	160W (Tc)
Drain to Source Voltage (Vdss)	200 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	2500 pF @ 25 V
RoHS	RoHS
