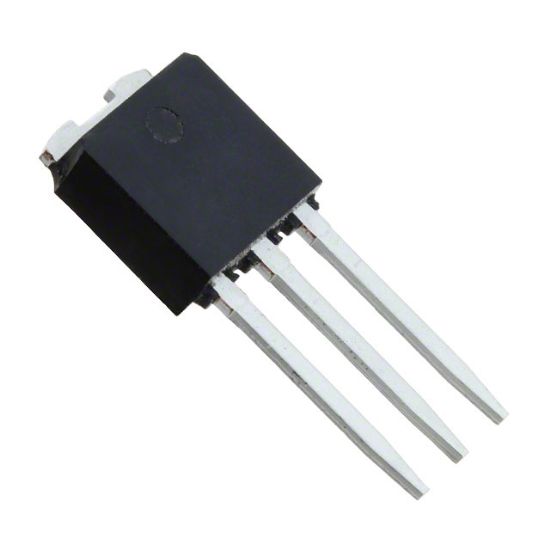

STD5NM60-1

MOSFET N-CH 600V 5A IPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STD5NM60-1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STD5NM60-1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D5NM60	STD5NM60-1		IPAK	3	600V 1Ohm 5A Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Rds On (Max) @ Id, Vgs	1Ohm @ 2.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	96W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V
Supplier Device Package	I-PAK
Input Capacitance (Ciss) (Max) @ Vds	400 pF @ 25 V
RoHS	RoHS
