STD815CP40

TRANS NPN/PNP 400V 1.5A 8DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STD815CP40

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STD815CP40 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D815CP40	STD815CP40		DIP-8	3	Complementary transistor pair in a single package

Operating Temperature	-
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 350mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	1.5A

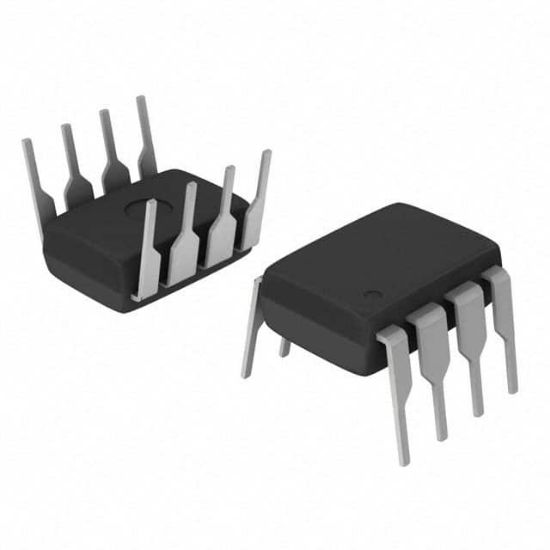

Supplier Device Package	8-DIP
Current - Collector Cutoff (Max)	1mA
Voltage - Collector Emitter Breakdown (Max)	400V
Power - Max	2.6W
Package	Tube
DC Current Gain (hFE) (Min) @ Ic, Vce	16 @ 350mA, 5V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN, PNP
