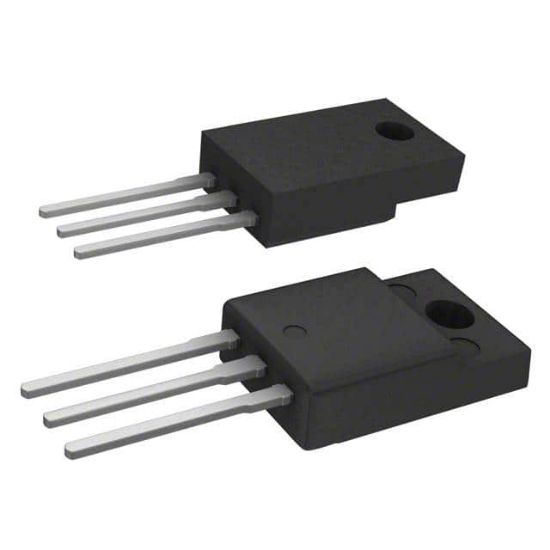

STF12NK60Z

MOSFET N-CH 600V 10A TO220FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STF12NK60Z

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STF12NK60Z Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F12NK60Z	STF12NK60Z		TO-220FP	3	N-channel 650 V 0.53 , 10 A Zener-protected SuperMESH Power MOSFET

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Rds On (Max) @ Id, Vgs	640mOhm @ 5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	35W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 100μA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V
Supplier Device Package	TO-220FP
Input Capacitance (Ciss) (Max) @ Vds	1740 pF @ 25 V
RoHS	RoHS
