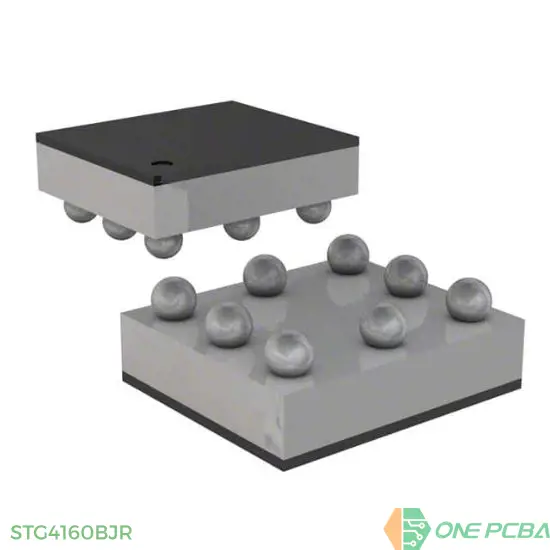

STG4160BJR

IC SWITCH SGL SPDT 2:1 8FLIPCHIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STG4160BJR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STG4160BJR Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	30pF
On-State Resistance (Max)	500mOhm
Mounting Type	Surface Mount
Supplier Device Package	8-FlipChip
Switch Circuit	SPDT
Voltage - Supply, Dual (V±)	-
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Charge Injection	162pC
Switch Time (Ton, Toff) (Max)	38ns, 38ns
Voltage - Supply, Single (V+)	1.65V ~ 4.8V
Crosstalk	-67dB @ 1MHz
Multiplexer/Demultiplexer Circuit	2:1
Channel-to-Channel Matching (ΔRon)	10mOhm
-3db Bandwidth	50MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	30nA
