STGD6NC60HDT4

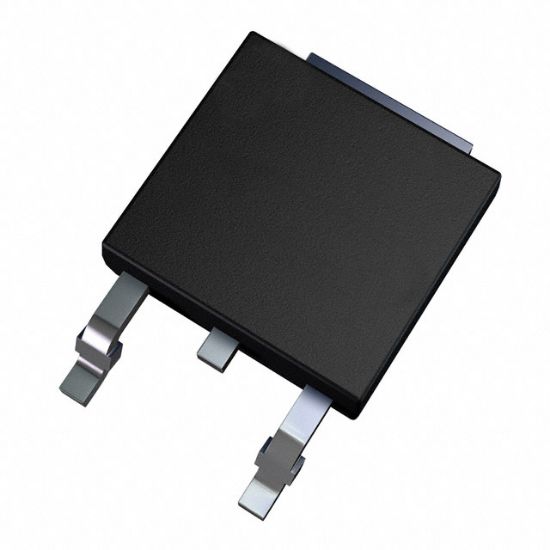

IGBT 600V 15A 56W DPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGD6NC60HDT4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGD6NC60HDT4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GD6NC60HD	STGD6NC60HDT4		DPAK	3	N-channel 600V - 7A Very fast PowerMESH IGBT

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	15 A
Supplier Device Package	DPAK
Gate Charge	13.6 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	56 W
IGBT Type	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Collector Pulsed (Icm)	21 A
Td (on/off) @ 25°C	12ns/76ns
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 3A
Test Condition	390V, 3A, 10Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	21 ns
Switching Energy	20μJ (on), 68μJ (off)
RoHS	RoHS
