STGF6NC60HD

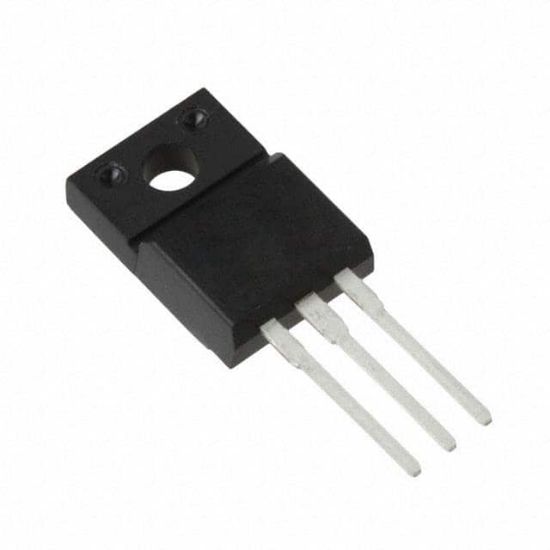

IGBT 600V 6A 20W TO220FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGF6NC60HD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGF6NC60HD Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GF6NC60HD	STGF6NC60HD		TO-220FP	3	N-channel 600V - 7A Very fast PowerMESH IGBT

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	6 A
Supplier Device Package	TO-220FP
Gate Charge	13.6 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	20 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	21 A
Td (on/off) @ 25°C	12ns/76ns
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 3A
Test Condition	390V, 3A, 10Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	21 ns
Switching Energy	20μJ (on), 68μJ (off)
RoHS	RoHS
