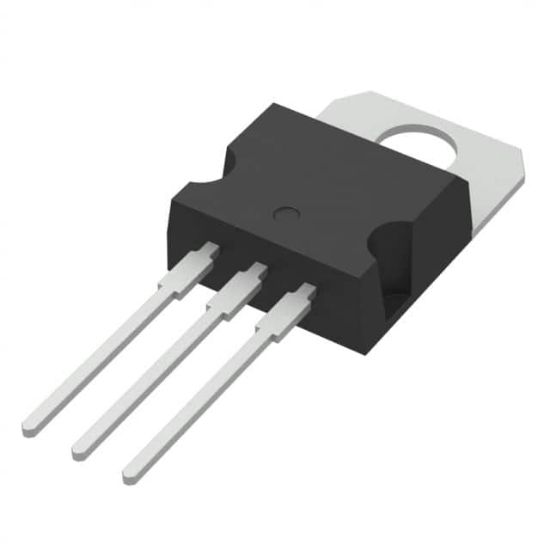

STGP14N60D

IGBT 600V 25A 95W TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGP14N60D

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGP14N60D Description

Operating Temperature	-
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	25 A
Supplier Device Package	TO-220
Gate Charge	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	95 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	50 A
Td (on/off) @ 25°C	-
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 7A
Test Condition	390V, 7A, 10Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	37 ns
Switching Energy	-
RoHS	RoHS
