STGW45NC60WD

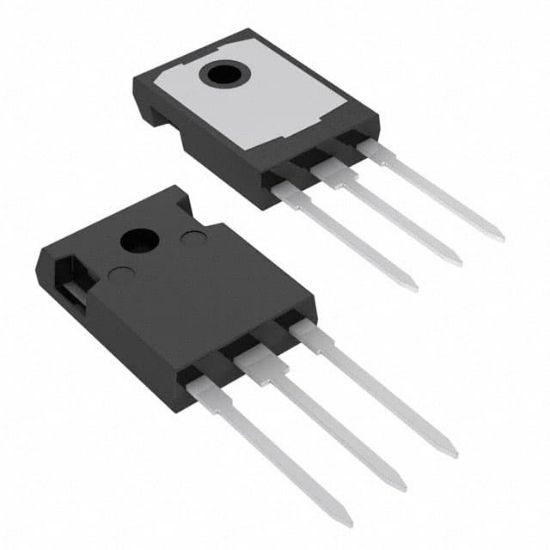

IGBT 600V 90A 285W TO247

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STGW45NC60WD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STGW45NC60WD Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GW45NC60WD	STGW45NC60WD		TO-247	3	45 A - 600 V ultra fast IGBT

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	90 A
Supplier Device Package	TO-247 Long Leads
Gate Charge	126 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	285 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	230 A
Td (on/off) @ 25°C	33ns/168ns
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 30A
Test Condition	390V, 30A, 10Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	45 ns
Switching Energy	302μJ (on), 349μJ (off)
RoHS	RoHS
