STP03D200

TRANS NPN DARL 1200V 0.1A TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP03D200

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP03D200 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P03D200	STP03D200		TO-220	3	2 kV NPN Darlington transistor

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	2V @ 500μA, 50mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	100 mA

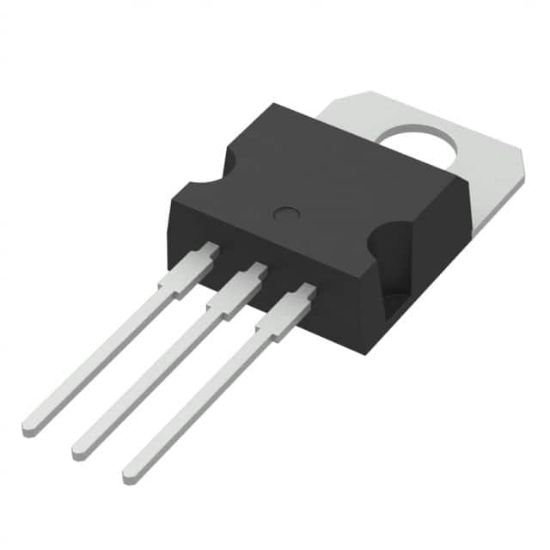

Supplier Device Package	TO-220
Current - Collector Cutoff (Max)	100μA
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	40 W
Package	Tube
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 30mA, 10V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN - Darlington
