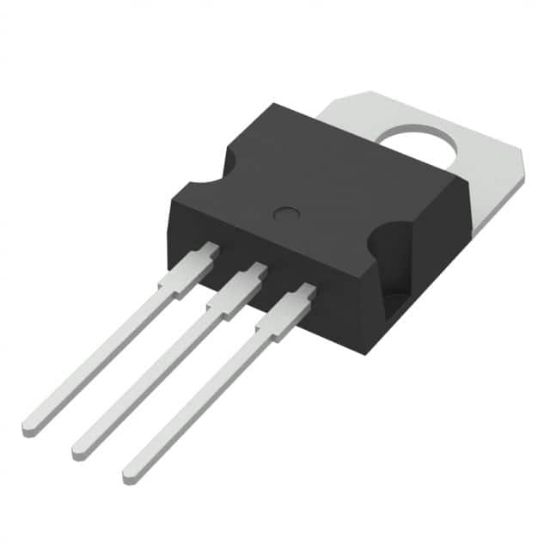

STP120NH03L

MOSFET N-CH 30V 60A TO220AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP120NH03L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP120NH03L Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P120NH03L	STP120NH03L		TO-220	3	N-channel 30V - 0.005Ω - 60A STripFET? Power MOSFET for DC-DC conversion

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Rds On (Max) @ Id, Vgs	5.5mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Package	Tube
Power Dissipation (Max)	110W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	77 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	4100 pF @ 25 V
RoHS	RoHS
