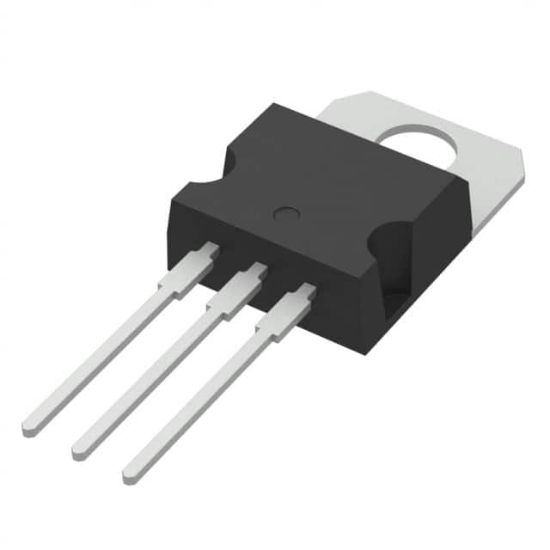

STP40NF12

MOSFET N-CH 120V 40A TO220AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP40NF12

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP40NF12 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P40NF12	STP40NF12		TO-220	3	N-channel 120V - 0.028Ω - 40A Low gate charge STripFET? II Power MOSFETp

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Rds On (Max) @ Id, Vgs	32mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	150W (Tc)
Drain to Source Voltage (Vdss)	120 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	1880 pF @ 25 V
RoHS	RoHS
