STP4NK60Z

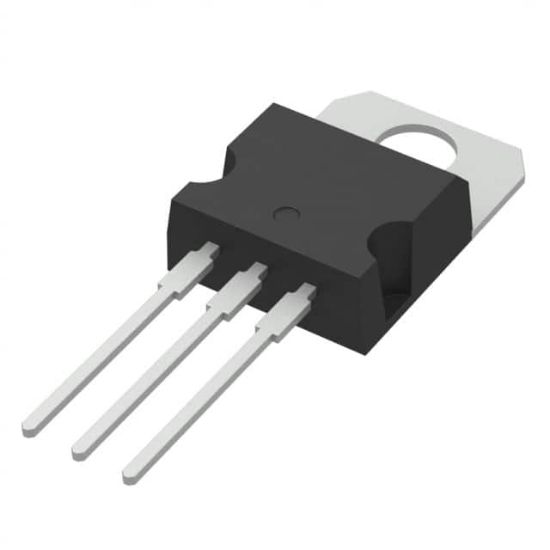

MOSFET N-CH 600V 4A TO220AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STP4NK60Z

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STP4NK60Z Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P4NK60Z	STP4NK60Z		TO-220	3	N-CHANNEL 600V - 1.76 Ohm - 4A Zener-Protected SuperMESH Power MOSFET

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Rds On (Max) @ Id, Vgs	2Ohm @ 2A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	70W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 50μA
Gate Charge (Qg) (Max) @ Vgs	26 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	510 pF @ 25 V
RoHS	RoHS
