STPS10170CB

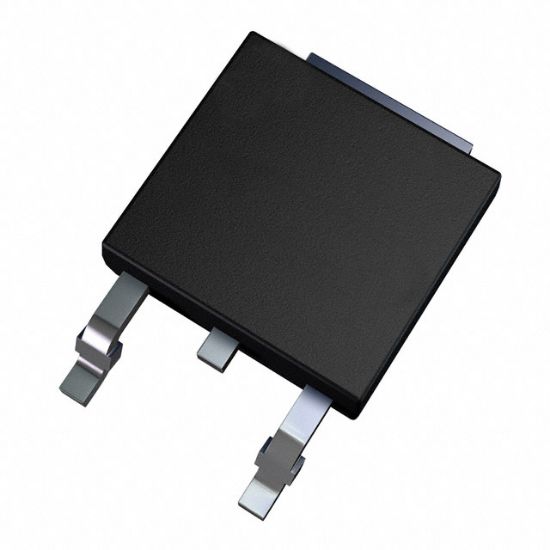

DIODE ARRAY SCHOTTKY 170V DPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STPS10170CB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STPS10170CB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PS10170CB	STPS10170CB		DPAK	3	High voltage power Schottky rectifier

Current - Average Rectified (Io) (per Diode)	5A
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Diode Type	Schottky
Operating Temperature - Junction	175°C (Max)
Package	Tube
Voltage - Forward (Vf) (Max) @ If	920 mV @ 5 A
Current - Reverse Leakage @ Vr	10 μA @ 170 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	170 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
