STS05DTP03

TRANS NPN/PNP 30V 5A 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STS05DTP03

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STS05DTP03 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
S05DTP03	STS05DTP03		SO-8	8	Dual NPN-PNP complementary bipolar transistor

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	700mV @ 250mA, 5A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	5A

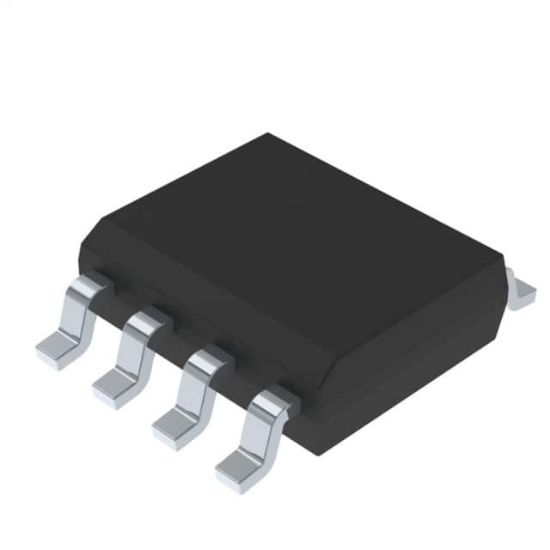

Supplier Device Package	8-SOIC
Current - Collector Cutoff (Max)	1μA
Voltage - Collector Emitter Breakdown (Max)	30V
Power - Max	2W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1A, 2V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN, PNP
