STW75NF30

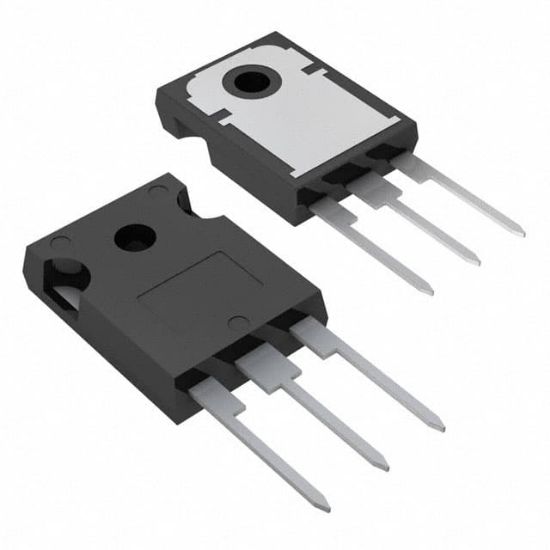

MOSFET N-CH 300V 60A TO247-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STW75NF30

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STW75NF30 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
75NF30	STW75NF30		TO-247	0	N-channel 300 V, 0.037 , 60 A, low gate charge STripFET Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Rds On (Max) @ Id, Vgs	45mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	320W (Tc)
Drain to Source Voltage (Vdss)	300 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	164 nC @ 10 V
Supplier Device Package	TO-247-3
Input Capacitance (Ciss) (Max) @ Vds	5930 pF @ 25 V
RoHS	RoHS
