SY100EL05ZI

IC GATE AND/NAND DIFF 2INP 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: SY100EL05ZI

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SY100EL05ZI Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
XEL05	SY100EL05ZI		Z8-1	0	2-Input Differential AND/NAND

Output Type	Differential
Operating Temperature	-40°C ~ 85°C
Current - Output High, Low	-
Number of Circuits	1
RoHS	RoHS
Logic Type	AND/NAND Gate
Voltage - Supply	4.2V ~ 5.5V

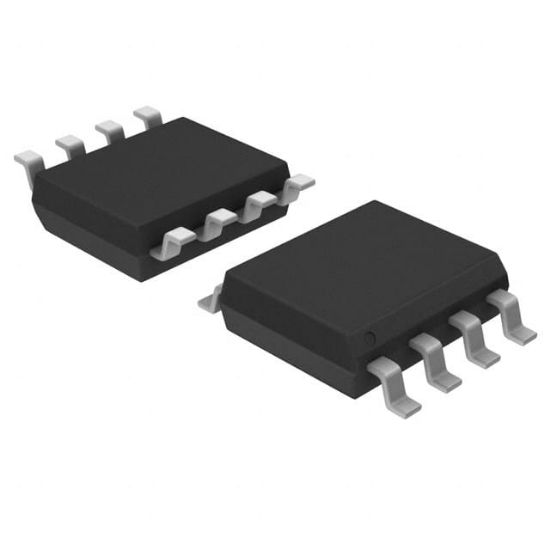

Supplier Device Package	8-SOIC
Package	Tube
Number of Inputs	2 Input (1, 1)
Schmitt Trigger Input	No
Mounting Type	Surface Mount
