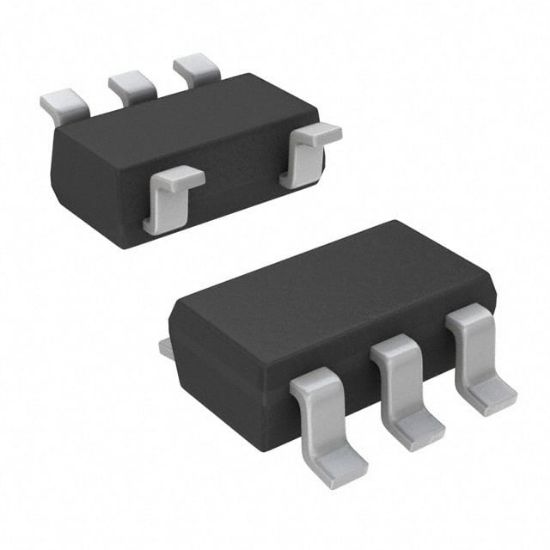

TC1014-3.0VCT713

IC REG LINEAR 3V 50MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: TC1014-3.0VCT713

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TC1014-3.0VCT713 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
A3xx	TC1014-3.0VCT713		SOT-23-5	5	3.0V 50 mA CMOS LDO with Shutdown and Reference Bypass

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.12V @ 50mA
Voltage - Output (Min/Fixed)	3V
Mounting Type	Surface Mount
Current - Output	50mA
PSRR	64dB (1kHz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	Enable
Voltage - Input (Max)	6V
Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	80 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
