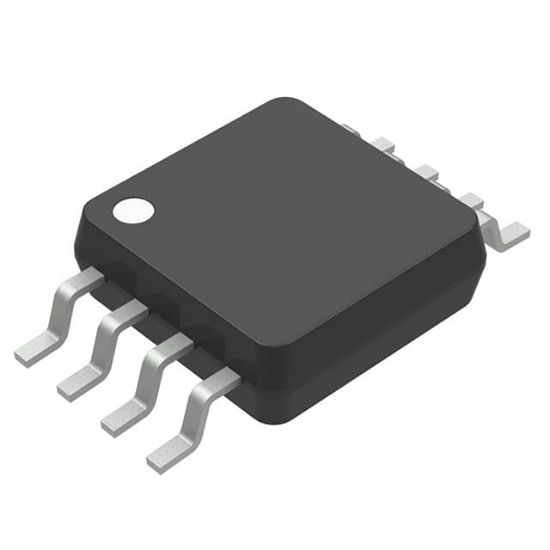

TC1302A-DTVUA

IC REG LINEAR 3V/1.65V 8MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: TC1302A-DTVUA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TC1302A-DTVUA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
32ADT	TC1302A-DTVUA		MSOP-8	0	3.0V/1.65V Low Quiescent Current Dual Output LDO

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.18V @ 300mA, -
Voltage - Output (Min/Fixed)	3V, 1.65V
Mounting Type	Surface Mount
Current - Output	300mA, 150mA
PSRR	58dB (100Hz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tube
Control Features	Enable
Voltage - Input (Max)	6V
Supplier Device Package	8-MSOP
Number of Regulators	2
Current - Quiescent (Iq)	180 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
