TCR22-4

SCR 200V 1.5A TO92

1 review(s) | Add your review

Availability: In stock

Manufacturer: Littelfuse Inc.

SKU: TCR22-4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TCR22-4 Description

Operating Temperature	-40°C ~ 110°C
Current - Off State (Max)	1 μA
Mounting Type	Through Hole

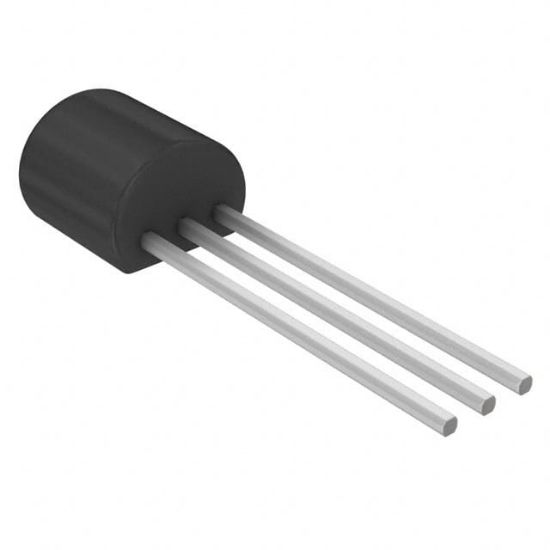

Supplier Device Package	TO-92
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Voltage - Off State	200 V
Current - On State (It (AV)) (Max)	950 mA
Current - Gate Trigger (Igt) (Max)	200 μA
Package	Bulk
Current - Non Rep. Surge 50, 60Hz (Itsm)	16A, 20A
Current - On State (It (RMS)) (Max)	1.5 A
SCR Type	Sensitive Gate
Voltage - On State (Vtm) (Max)	1.5 V
Current - Hold (Ih) (Max)	5 mA
RoHS	RoHS
