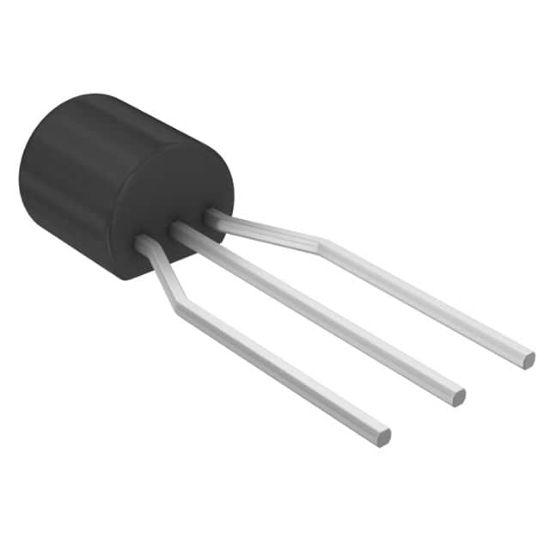

TL1431CLPR

IC VREF SHUNT ADJ 0.4% TO92-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TL1431CLPR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TL1431CLPR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TL1431C	TL1431CLPR	TI	3	0	Precision Adjustable (Programmable) Shunt Reference

Operating Temperature	0°C ~ 70°C (TA)
Voltage - Output (Min/Fixed)	2.5V
Mounting Type	Through Hole
Current - Output	100 mA
Noise - 10Hz to 10kHz	-
Reference Type	Shunt
Noise - 0.1Hz to 10Hz	-
Voltage - Output (Max)	36 V
Voltage - Input	-
Package	Tape & Reel (TR),Cut Tape (CT),Bulk
Current - Cathode	1 mA
Tolerance	±0.4%
Supplier Device Package	TO-92-3
Temperature Coefficient	-
RoHS	RoHS
Current - Supply	-
Output Type	Adjustable
