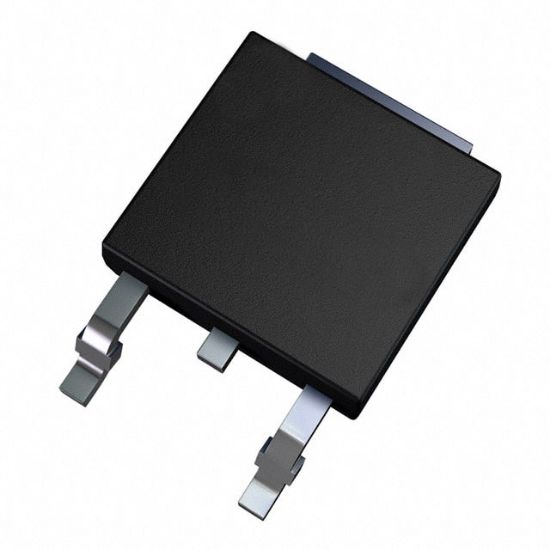

TLV1117CKTPR

IC REG LIN POS ADJ 800MA TO252-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLV1117CKTPR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLV1117CKTPR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TV1117	TLV1117CKTPR	TI	2	0	Single Output LDO, 800mA, Fixed and Adj., Internal Current limit, Thermal Overload Protection

Operating Temperature	0°C ~ 125°C
Voltage Dropout (Max)	1.3V @ 800mA
Voltage - Output (Min/Fixed)	1.25V
Mounting Type	Surface Mount
Current - Output	800mA
PSRR	75dB (120Hz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Bulk
Control Features	-
Voltage - Input (Max)	15V
Supplier Device Package	TO-252-3
Number of Regulators	1
Current - Quiescent (Iq)	10 mA
RoHS	RoHS
Voltage - Output (Max)	13.7V
Output Type	Adjustable
