TLV1543CDBR

IC ADC 10BIT SAR 20SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLV1543CDBR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLV1543CDBR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TV1543	TLV1543CDBR	TI	20	0	10-Bit 200 kSPS ADC Ser. Out, Built-In Self-Test Modes, Inherent S&H, Pin Compat. w/TLC1543, 11 Ch.

Operating Temperature	0°C ~ 70°C
Data Interface	SPI
Number of A/D Converters	1
Reference Type	External
Mounting Type	Surface Mount

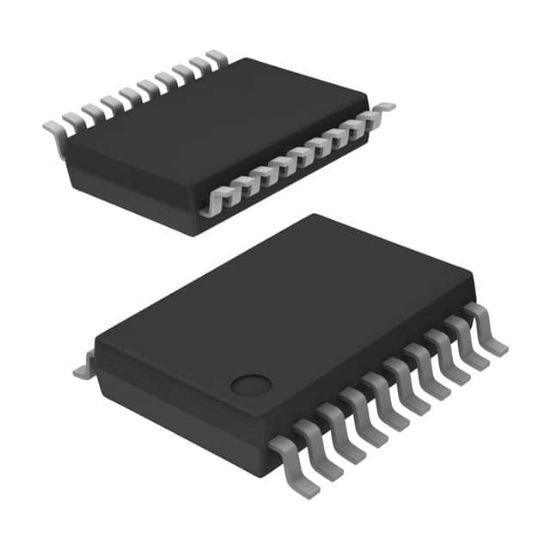

Supplier Device Package	20-SSOP
Number of Bits	10
Number of Inputs	11
Package	Tape & Reel (TR)
Configuration	MUX-S/H-ADC
Architecture	SAR
Input Type	Single Ended
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	3V ~ 5.5V
Features	Selectable Address
Sampling Rate (Per Second)	38k
RoHS	RoHS
Voltage - Supply, Digital	3V ~ 5.5V
