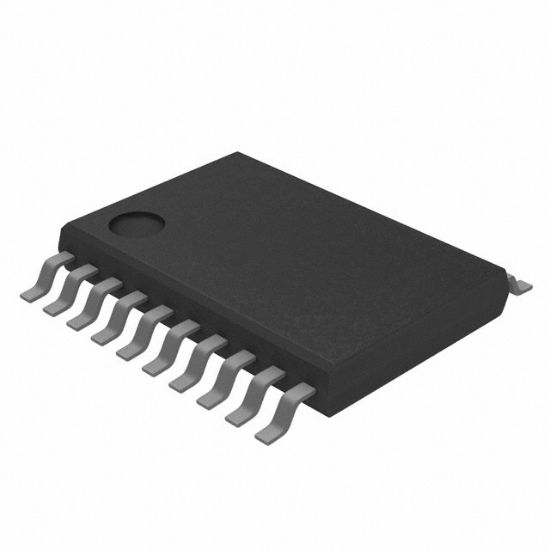

TLV2548CPWR

IC ADC 12BIT SAR 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLV2548CPWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLV2548CPWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TV2548	TLV2548CPWR	TI	20	0	12-Bit 200 kSPS ADC Ser. Out, Auto Pwrdn (S/W and H/W), Low Power W/8 x FIFO W/8 Ch.

Operating Temperature	0°C ~ 70°C
Data Interface	SPI, DSP
Number of A/D Converters	1
Reference Type	External, Internal
Mounting Type	Surface Mount
Supplier Device Package	20-TSSOP
Number of Bits	12
Number of Inputs	8
Package	Tape & Reel (TR)
Configuration	MUX-S/H-ADC
Architecture	SAR
Input Type	Single Ended
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	2.7V ~ 5.5V
Features	-
Sampling Rate (Per Second)	200k
RoHS	RoHS
Voltage - Supply, Digital	2.7V ~ 5.5V
