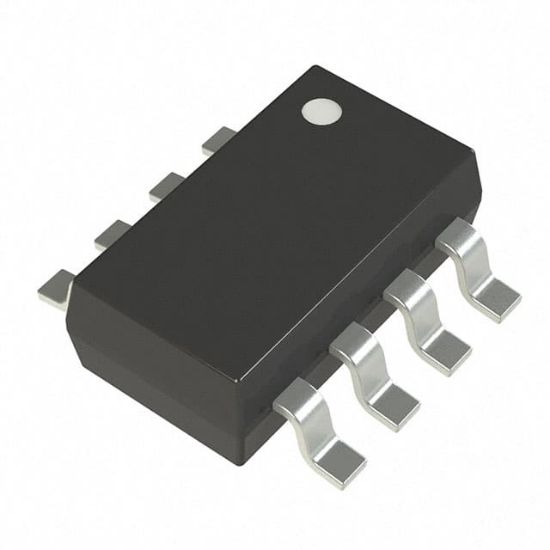

TLV3502AIDCNTG4

IC COMPARATOR R-R HI-SPD SOT23-8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLV3502AIDCNTG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLV3502AIDCNTG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
NXC	TLV3502AIDCNTG4	TI	8	0	4.5ns Rail-to-Rail Comparator

Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset (Max)	6.5mV @ 5.5V
Number of Elements	2
Current - Output (Typ)	-
Mounting Type	Surface Mount
Hysteresis	6mV
Supplier Device Package	SOT-23-8
Voltage - Supply, Single/Dual (±)	2.7V ~ 5.5V, ±1.35V ~ 2.75V
Package	Tape & Reel (TR)
Current - Quiescent (Max)	5mA
CMRR, PSRR (Typ)	70dB CMRR, 100dB PSRR
Type	General Purpose
Propagation Delay (Max)	10ns
Current - Input Bias (Max)	10pA @ 5.5V
RoHS	RoHS
Output Type	CMOS, Push-Pull, Rail-to-Rail, TTL
