TM4C1233E6PZI7

IC MCU 32BIT 128KB FLASH 100LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TM4C1233E6PZI7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TM4C1233E6PZI7 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TM4C1233 E6PZI7	TM4C1233E6PZI7	TI	100	0	High performance 32-bit ARM? Cortex?-M4F based MCU

Number of I/O	69
Core Processor	ARM? Cortex?-M4F
EEPROM Size	2K x 8
Data Converters	A/D 22x12b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)

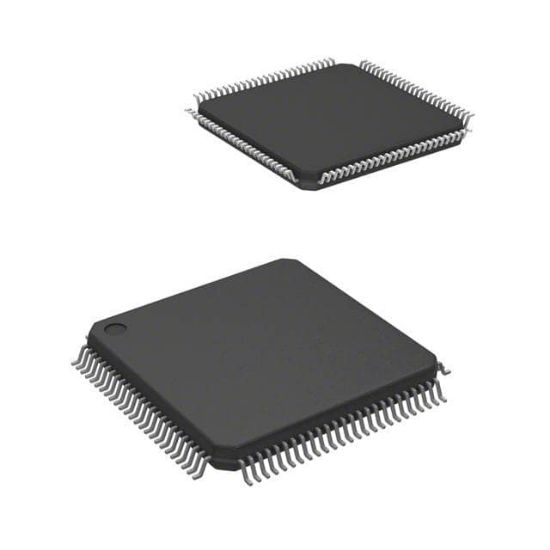

Supplier Device Package	100-LQFP (14x14)
Core Size	32-Bit
Program Memory Size	128KB (128K x 8)
Package	Tube
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.08V ~ 3.63V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT
Connectivity	CANbus, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB
RoHS	RoHS
Speed	80MHz
RAM Size	32K x 8
