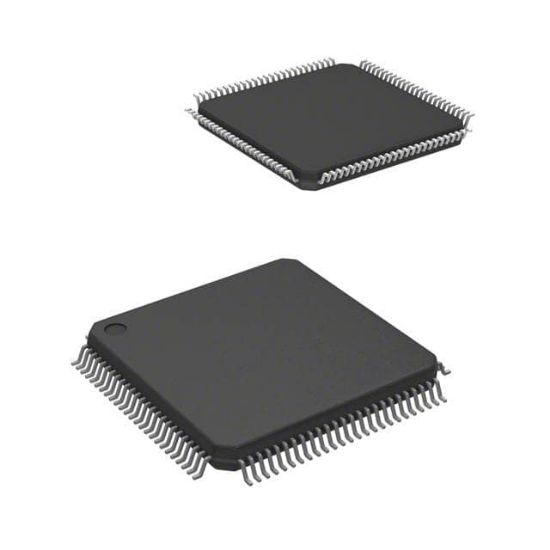

TMS320F28069MPZT

IC MCU 32BIT 256KB FLASH 100LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: TMS320F28069MPZT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TMS320F28069MPZT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F28069MPZT TMS320	TMS320F28069MPZT	TI	100	0	Piccolo Microcontroller with InstaSPIN-MOTION

Number of I/O	54
Core Processor	C28x
EEPROM Size	-
Data Converters	A/D 16x12b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 105°C (TA)
Supplier Device Package	100-LQFP (14x14)
Core Size	32-Bit
Program Memory Size	256KB (128K x 16)
Package	Bulk,Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.71V ~ 1.995V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity	CANbus, I2C, McBSP, SCI, SPI, UART/USART
RoHS	RoHS
Speed	90MHz
RAM Size	50K x 16
