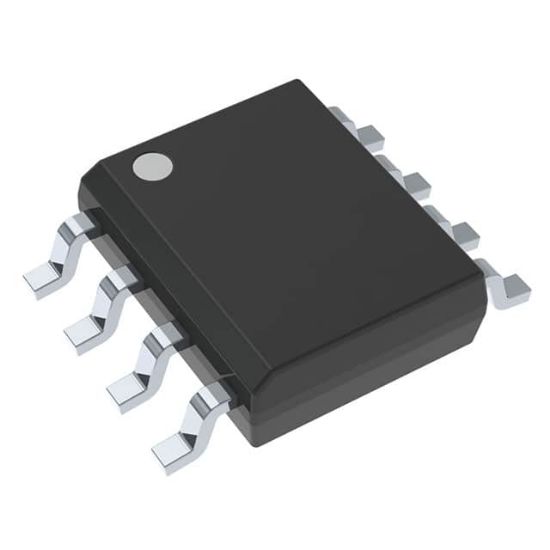

TPS1101D

MOSFET P-CH 15V 2.3A 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS1101D

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS1101D Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1101	TPS1101D		SO-8	8	Single P-channel Enhancement-Mode MOSFET

Operating Temperature	-40°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.3A (Ta)
Rds On (Max) @ Id, Vgs	90mOhm @ 2.5A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 10V
Package	Tube
Power Dissipation (Max)	791mW (Ta)
Drain to Source Voltage (Vdss)	15 V
Vgs (Max)	+2V, -15V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	11.25 nC @ 10 V
Supplier Device Package	8-SOIC
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
