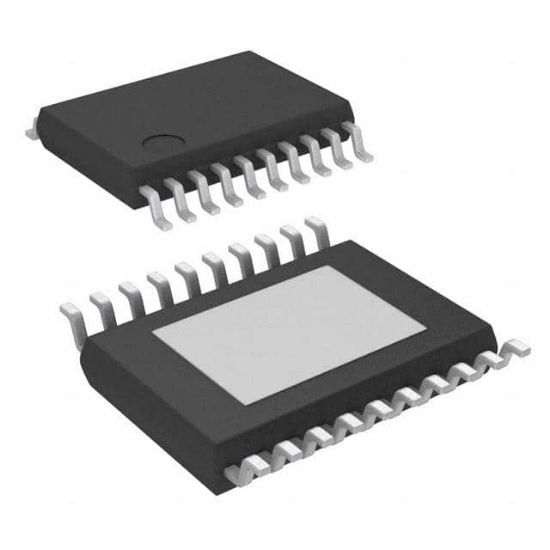

TPS54316PWPRG4

IC REG BUCK 3.3V 3A 20HTSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS54316PWPRG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS54316PWPRG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TPS54316	TPS54316PWPRG4	TI	20	0	3V to 6V Input, 3A Synchronous Step-Down SWIFT? Converter with 3.3V Output

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	350kHz, 550kHz
Voltage - Output (Min/Fixed)	3.3V
Mounting Type	Surface Mount
Current - Output	3A
Supplier Device Package	20-HTSSOP
Synchronous Rectifier	Yes
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	3V
Package	Tape & Reel (TR)
Topology	Buck
Voltage - Input (Max)	6V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
