TPS544B25RVFR

IC REG BUCK ADJ 20A 40LQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS544B25RVFR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS544B25RVFR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TPS544B25	TPS544B25RVFR	TI	40	0	4.5-V to 18-V,20-A SWIFT? Synchronous Buck Converter with PMBus? and Frequency Synchronization

Operating Temperature	-40°C ~ 125°C (TJ)
Frequency - Switching	200kHz ~ 1MHz
Voltage - Output (Min/Fixed)	0.5V
Mounting Type	Surface Mount
Current - Output	20A

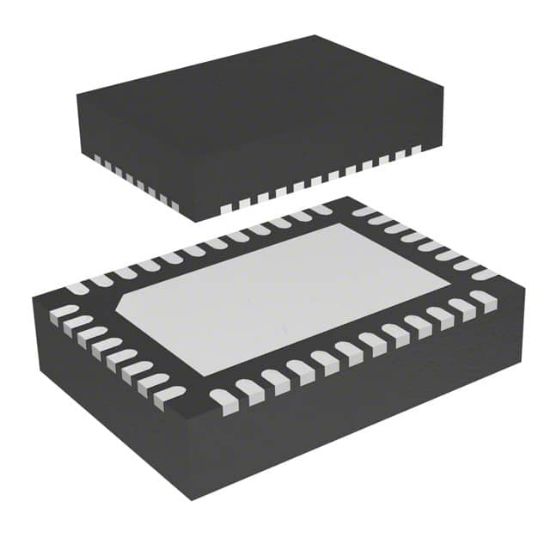

Supplier Device Package	40-LQFN-CLIP (7x5)
Synchronous Rectifier	Yes
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	4.5V
Package	Tape & Reel (TR)
Topology	Buck
Voltage - Input (Max)	18V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	5.5V
Output Type	Adjustable
