TPS60403DBVT

IC REG CHARG PUMP INV 60MA SOT23

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS60403DBVT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS60403DBVT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PFNI	TPS60403DBVT	TI	5	0	60mA Charge Pump Voltage Inverter with Fixed 250kHz Operation

Operating Temperature	-40°C ~ 125°C (TJ)
Frequency - Switching	250kHz
Voltage - Output (Min/Fixed)	-Vin, 2Vin, Vin/2
Mounting Type	Surface Mount
Current - Output	60mA

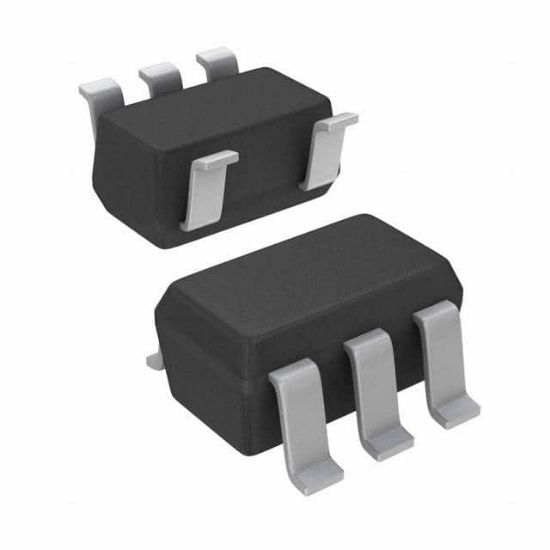

Supplier Device Package	SOT-23-5
Synchronous Rectifier	No
Function	Ratiometric
Output Configuration	Positive or Negative
Voltage - Input (Min)	1.8V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Topology	Charge Pump
Voltage - Input (Max)	5.25V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
