TPS62203DBVTG4

IC REG BUCK 3.3V 300MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS62203DBVTG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS62203DBVTG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PHNI	TPS62203DBVTG4	TI	5	0	3.3-V Output, 300-mA, 95% Efficient Step-Down Converter in SOT-23

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	1MHz
Voltage - Output (Min/Fixed)	3.3V
Mounting Type	Surface Mount
Current - Output	300mA

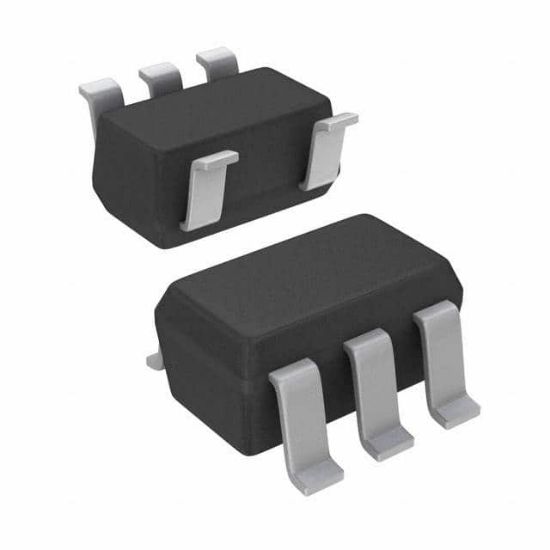

Supplier Device Package	SOT-23-5
Synchronous Rectifier	Yes
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	2.5V
Package	Tape & Reel (TR)
Topology	Buck
Voltage - Input (Max)	6V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
