TPS70950DBVR

IC REG LINEAR 5V 150MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS70950DBVR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS70950DBVR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
SDH	TPS70950DBVR	TI	5	0	150-mA, 30-V, Ultra-Low IQ, Wide Input Low-Dropout Regulator with Reverse Current Protection

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	1.2V @ 150mA
Voltage - Output (Min/Fixed)	5V
Mounting Type	Surface Mount
Current - Output	150mA
PSRR	80dB ~ 52dB (10Hz ~ 1kHz)
Current - Supply (Max)	350 μA
Protection Features	Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	Enable
Voltage - Input (Max)	30V

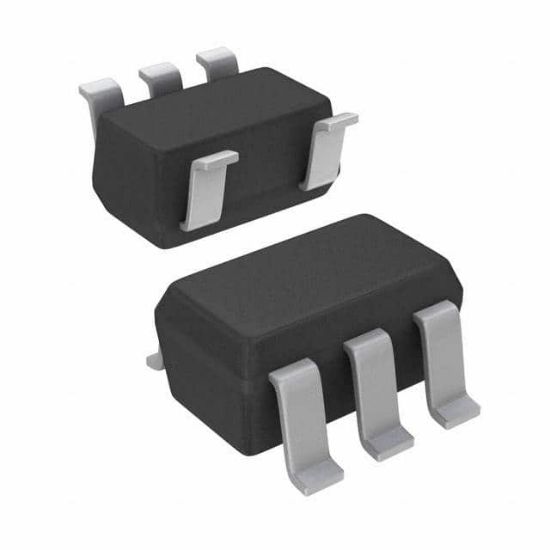

Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	2.05 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
